高平臺法蘭球閥
一、高平臺法蘭球閥 產品概述
高平臺法蘭球閥全稱是兩片式全通徑高平臺法蘭球閥，是一種新型免支架安裝的球閥，多用于和氣動執行器或電動執行器連接，組成氣動法蘭球閥和電動法蘭球閥，具有安裝簡單、結構緊湊等優點。簡化了閥門組裝調試過程中的支架連接方式、也方便了客戶在緊湊型空間的維護和使用，高平臺法蘭球閥為一體化設計鑄造，成型快、維修方便。

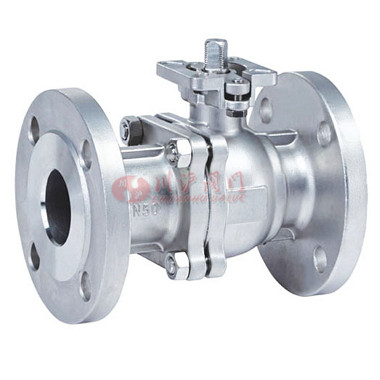

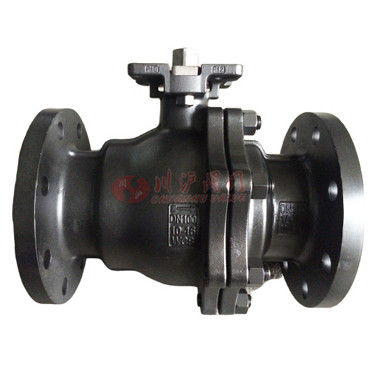

二、高平臺法蘭球閥 產品圖片
 |
 |
| 高平臺法蘭球閥 | 高平臺法蘭球閥 |
三、高平臺法蘭球閥 零部件參數
| 設計與制造 | GB/T 12237 |
|---|---|
| 結構長度 | GB/T 12221 |
| 壓力試驗 | GB/T 13927 |
| 法蘭連接尺寸 | GB/T 9113.1~9113.4、JB/T79.1~79.4、HG20596、SH3406 |

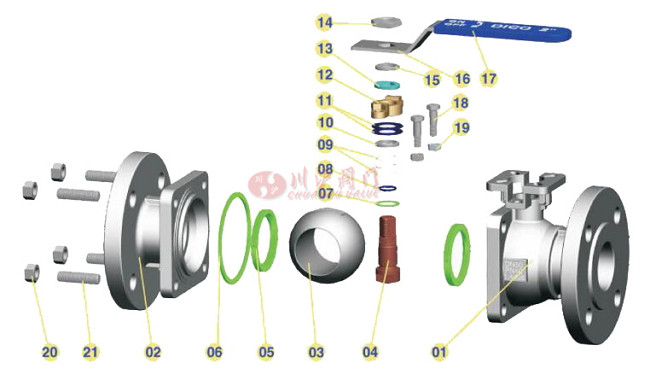

四、高平臺法蘭球閥 分解圖
 |
五、高平臺法蘭球閥 零部件材質
| NO. | 零件名稱PART NAME | PN16/40 | CLASS150/300 | JIS-10K | DIN PN40 | ||
|---|---|---|---|---|---|---|---|
| 1 | 閥體BODY | CF8M | CF8 | CF8M | WCB | SCS13 | 1.4408 |
| 2 | 閥盞END CAP | CF8M | CF8 | CF8M | WCB | SCS13 | 1.4408 |
| 3 | 球 BALL | SS316 | SS304 | SS316 | SS304 | SS304 | SS316 |
| 4 | 閥桿STEM | SS316 | SS304 | SS316 | SS304 | SS304 | SS316 |
| 5 | 閥座SEAL | RTFE | RTFE | RTFE | RTFE | RTFE | RTFE |
| 6 | 線條 BODY SEAL | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE |
| 7 | 桿密封 THRUST WASHER | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE |
| 8 | 0型圈 STEM O-RING | VITON | VITON | VITON | VITON | VITON | VITON |
| 9 | 中頭墊 STEM PACKING | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE |
| 10 | 填料壓套GLAND | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
| 11 | 碟黃 BELLEVILLE WASHER | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
| 12 | 填料壓蓋Packing gland | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
| 13 | 定位片STOP PLATE | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
| 14 | 螺帽 HANDLE NUT | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
| 15 | 金屬墊WASHER | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
| 16 | 手柄 HANDLE | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
| 17 | 膠套 LOCKING PAD | PLASTIC | PLASTIC | PLASTIC | PLASTIC | PLASTIC | PLASTIC |
| 18 | 螺栓 BOIT | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
| 19 | 螺母NUT | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
| 20 | 定位螺帽STOP NUT | A193 Gr.B8 | A193 Gr.B8 | A193 Gr.B8 | A193 Gr.B8 | A193 Gr.B8 | A193 Gr.B8 |
| 21 | 定位螺絲STOP BOIT | A194.Gr.8 | A194.Gr.8 | A194.Gr.8 | A194.Gr.8 | A194.Gr.8 | A194.Gr.8 |

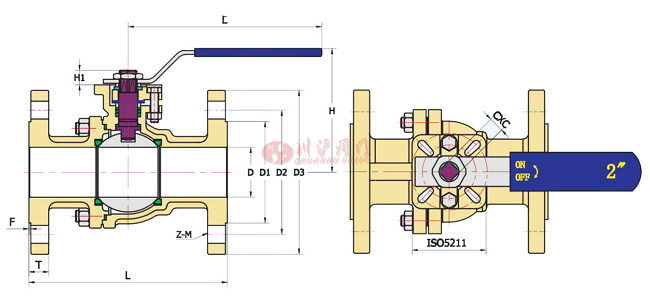

六、高平臺法蘭球閥 結構圖
 |
七、高平臺法蘭球閥 連接尺寸
GB（國標法蘭）DN15-DN50 PN16/40，DN65-DN100 PN16
| 通徑DN | D | L | E | H | H1 | C | D1 | D2 | D3 | T | F | M-N | IS05211 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 1/2" | 15 | 130 | 112 | 48 | 9 | 9 | 46 | 65 | 95 | 14 | 2 | 4-14 | F03/F04 |
| DN20 | 3/4" | 20 | 140 | 112 | 62 | 9 | 9 | 56 | 75 | 105 | 14 | 2 | 4-14 | F03/F04 |
| DN25 | 1" | 25 | 150 | 136 | 64 | 11 | 11 | 65 | 85 | 115 | 14 | 2 | 4-14 | F04/F05 |
| DN32 | 1-1/4" | 32 | 165 | 185 | 71 | 11 | 11 | 78 | 100 | 135 | 16 | 2 | 4-18 | F04/F05 |
| DN40 | 1-1/2" | 38 | 180 | 198 | 76 | 14 | 14 | 84 | 110 | 145 | 16 | 2 | 4-18 | F05/F07 |
| DN50 | 2" | 50 | 200 | 198 | 84.5 | 14 | 14 | 100 | 125 | 160 | 16 | 2 | 4-18 | F05/F07 |
| DN65 | 2-1/2" | 64 | 220 | 265 | 106.8 | 17 | 17 | 120 | 145 | 185 | 18 | 2 | 4-18 | F07/F10 |
| DN80 | 3" | 78 | 250 | 265 | 116.0 | 17 | 17 | 135 | 160 | 195 | 20 | 2 | 8-18 | F07/F10 |
| DN100 | 4" | 100 | 280 | 325 | 154.5 | 17 | 17 | 156 | 180 | 215 | 20 | 2 | 8-18 | F07/F10 |
1/2"~4"Class 150
| SIZE | D | L | E | H | H1 | C | D1 | D2 | D3 | T | F | M-N | IS05211 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 1/2" | 15 | 108 | 112 | 48 | 9 | 9 | 35.0 | 60.5 | 89.0 | 10.5 | 1.6 | 4-16 | F03/F04 |
| DN20 | 3/4" | 20 | 117 | 112 | 62 | 9 | 9 | 43.0 | 70.0 | 98.6 | 10.5 | 1.6 | 4-16 | F03/F04 |
| DN25 | 1" | 25 | 127 | 136 | 64 | 11 | 11 | 51.0 | 79.2 | 108.0 | 10.5 | 1.6 | 4-16 | F04/F05 |
| DN32 | 1-1/4" | 32 | 140 | 185 | 71 | 11 | 11 | 63.5 | 88.9 | 117.5 | 11.2 | 1.6 | 4-16 | F04/F05 |
| DN40 | 1-1/2" | 38 | 165 | 198 | 76 | 14 | 14 | 73.2 | 98.6 | 127.0 | 12.7 | 1.6 | 4-16 | F05/F07 |
| DN50 | 2" | 50 | 178 | 198 | 84.5 | 14 | 14 | 92.0 | 120.7 | 152.5 | 14.3 | 1.6 | 4-19 | F05/F07 |
| DN65 | 2-1/2" | 64 | 190 | 265 | 106.8 | 17 | 17 | 104.7 | 139.7 | 177.8 | 15.9 | 1.6 | 4-19 | F07/F10 |
| DN80 | 3" | 78 | 203 | 265 | 116.0 | 17 | 17 | 127.0 | 152.4 | 190.5 | 17.5 | 1.6 | 4-19 | F07/F10 |
| DN100 | 4" | 100 | 229 | 325 | 154.5 | 17 | 17 | 157.2 | 190.5 | 228.6 | 22.3 | 1.6 | 8-19 | F07/F10 |
1/2"~4"Class 300
| SIZE | D | L | E | H | H1 | C | D1 | D2 | D3 | T | F | M-N | IS05211 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 1/2" | 15 | 140 | 112 | 48 | 9 | 9 | 35.0 | 66.5 | 95.0 | 14.3 | 1.6 | 4-16 | F03/F04 |
| DN20 | 3/4" | 20 | 152 | 112 | 62 | 9 | 9 | 43.0 | 82.6 | 117.4 | 15.9 | 1.6 | 4-16 | F03/F04 |
| DN25 | 1" | 25 | 165 | 136 | 64 | 11 | 9 | 51.0 | 88.9 | 124.0 | 17.5 | 1.6 | 4-16 | F04/F05 |
| DN32 | 1-1/4" | 32 | 178 | 185 | 71 | 11 | 9 | 63.5 | 98.6 | 133.4 | 19.1 | 1.6 | 4-16 | F04/F05 |
| DN40 | 1-1/2" | 38 | 190 | 198 | 76 | 14 | 14 | 73.2 | 114.3 | 155.5 | 20.6 | 1.6 | 4-16 | F05/F07 |
| DN50 | 2" | 50 | 216 | 198 | 84.5 | 14 | 14 | 92.0 | 127.0 | 165.1 | 22.4 | 1.6 | 8-19 | F05/F07 |
| DN65 | 2-1/2" | 64 | 241 | 265 | 106.8 | 17 | 17 | 104.7 | 149.4 | 190.5 | 25.4 | 1.6 | 8-19 | F07/F10 |
| DN80 | 3" | 78 | 283 | 265 | 116.0 | 17 | 17 | 127.0 | 168.1 | 209.6 | 28.6 | 1.6 | 8-19 | F07/F10 |
| DN100 | 4" | 100 | 305 | 325 | 154.5 | 17 | 17 | 157.2 | 200.2 | 254.0 | 31.8 | 1.6 | 8-19 | F07/F10 |
10K 15A-100A
| SIZE | D | L | E | H | H1 | C | D1 | D2 | D3 | T | F | M-N | IS05211 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 1/2" | 15 | 108.0 | 112 | 48 | 9 | 9 | 51 | 70 | 95 | 12 | 1 | 4-15 | F03/F04 |
| DN20 | 3/4" | 20 | 117.0 | 112 | 62 | 9 | 9 | 56 | 75 | 100 | 14 | 1 | 4-15 | F03/F04 |
| DN25 | 1" | 25 | 127.0 | 136 | 64 | 11 | 9 | 67 | 90 | 125 | 14 | 1 | 4-19 | F04/F05 |
| DN32 | 1-1/4" | 32 | 140.0 | 185 | 71 | 11 | 9 | 76 | 100 | 135 | 16 | 2 | 4-19 | F04/F05 |
| DN40 | 1-1/2" | 38 | 165.0 | 198 | 76 | 14 | 14 | 81 | 105 | 140 | 16 | 2 | 4-19 | F05/F07 |
| DN50 | 2" | 50 | 178.0 | 198 | 84.5 | 14 | 14 | 96 | 120 | 155 | 16 | 2 | 4-19 | F05/F07 |
| DN65 | 2-1/2" | 64 | 190.0 | 265 | 106.8 | 17 | 17 | 116 | 140 | 175 | 18 | 2 | 4-19 | F07/F10 |
| DN80 | 3" | 78 | 203.0 | 265 | 116.0 | 17 | 17 | 126 | 150 | 185 | 18 | 2 | 8-19 | F07/F10 |
| DN100 | 4" | 100 | 229.0 | 325 | 154.5 | 17 | 17 | 151 | 175 | 210 | 18 | 2 | 8-19 | F07/F10 |
注：由于產品改進技術創新參數可能有一定變化，公司不另行通知，請咨詢公司技術部門索取新數據。
